​​​​Soldier300 Industrial Scanner

roduct specifications

• Decode Capability 1D, 2D
• Connectivity  Corded
• Dimension 61×52.1×100.9mm
• Weight 394.7g
• Sealing  IP67
• Interface USB, RS-232, RS485(optional), TCP/IP, UDP, FTP, Modbus, Ethernet/IP, Profinet

Features

•  2D Barcode
•  1D Barcode
•  RS232
• Ethernet
•  IP67
• PoE

Vertical

• Manufacturing
• Warehouse

Features

Through the automatic focusing of the liquid lens, the High performance quad-core processor, embedded high performance image processing acceleration engine, combined with advanced multi-thread parallel decoding technology, single image decoding speed significantly improved, and can simultaneously process multiple images, supporting high frame speed scene applications, the highest decoding rate can reach 60 frames per second.

Through the software NSet, the scanner can be configured diversified, including networking, multi-code, communication and other functions, and equipped with a powerful AutoLearn self-learning function on the device and in the software, which can achieve one-click completion of image and focus settings, which greatly improves the convenience of barcode reader configuration.

It has a built-in IP67 seal, which is suitable for various complex environments and relatively compact industrial environ

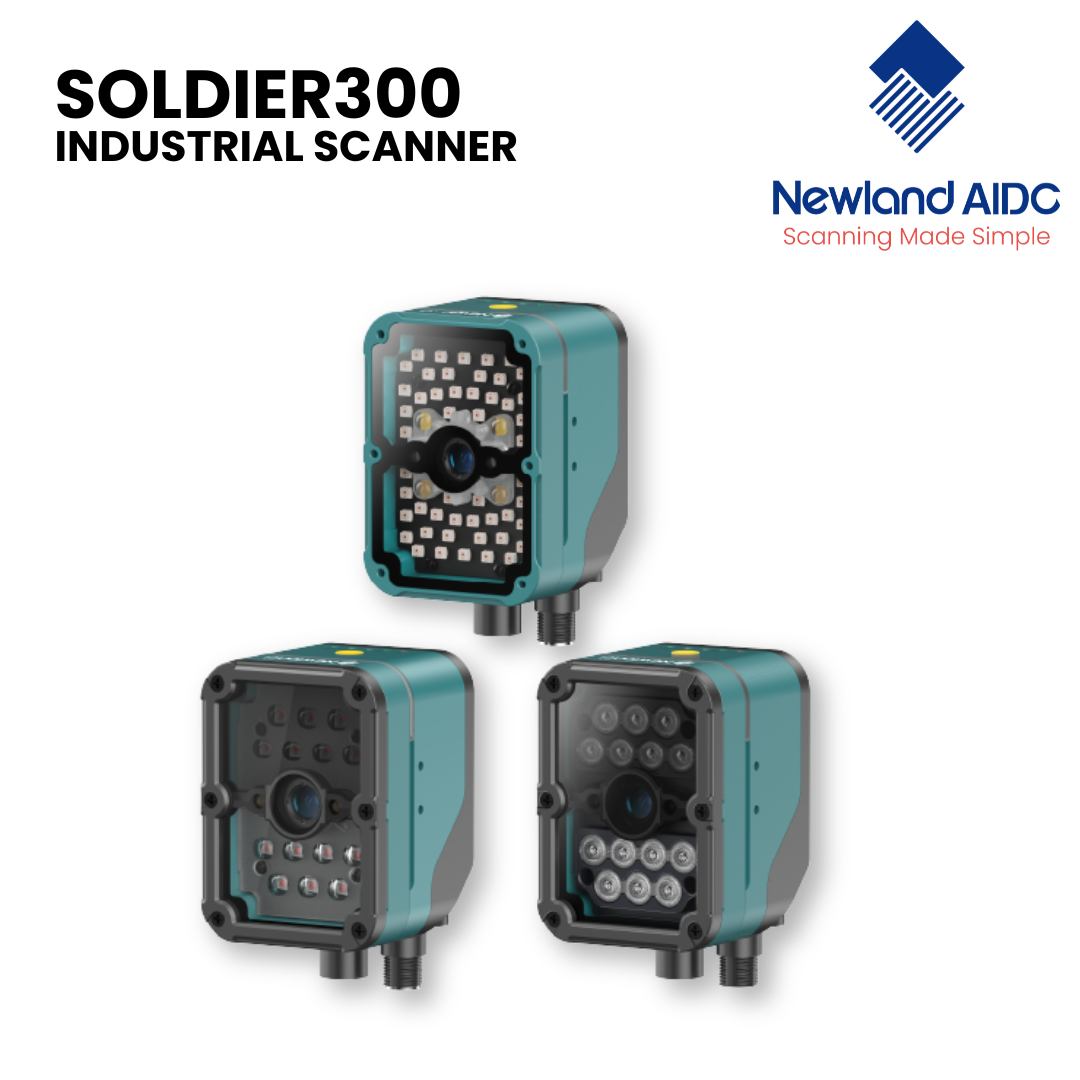

Providing N, W, S version which can meet the needs of application scenarios with large field of view, standard field of view and high precision. And the built-in liquid focusing lens can quickly complete the focusing operation.

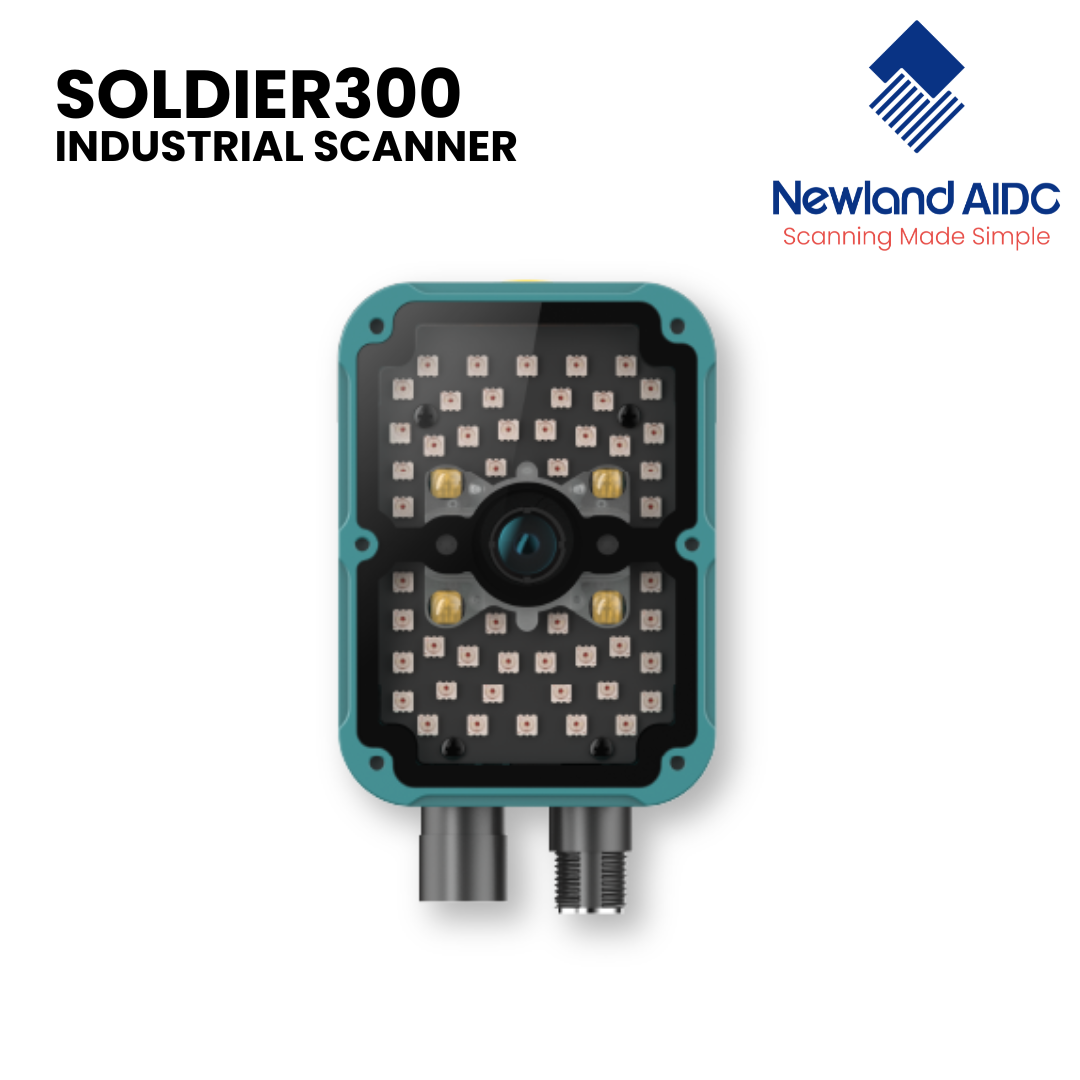

Integrated lighting source scheme, bright white light with area array red light, flexible sub-block lighting, can meet the needs of different application scenarios. At the same time, it includes accessories such as diffuser cover and polarizer, which realizes high-quality reflective scene reading ability.

Integrated RS-232/RS485/USB/Ethernet/Industrial Ethernet (Profinet, Ethernet/IP), support POE power supply and IO port input and output at the same time.

• A New Generation of Multi-core Processor Platform

• Fast and rich configuration method

• High Protection Industrial Structure Design

• Multiple models meet multiple scenarios

• Newly Upgraded Lighting System

• Rich communication interface

Specifications

Performance	Main unit	Model Type: NLS-Soldier300W: Wide-field type NLS-Soldier300N: Standard type NLS-Soldier300S: Long-distance type
	Optical	Sensor: CMOS Image Sensor
		Number of pixels: 1920 × 1200 pixels
		Illumination: NLS-Soldier300W: 14 High-intensity red LED NLS-Soldier300N: 50 red dot matrix + 4 High-intensity white LED NLS-Soldier300S: 14 High-intensity red LED
		Polarising filter: NLS-Soldier300W: For part lighting(Standard) NLS-Soldier300N: For full lighting(Optional) NLS-Soldier300S: For part lighting(Standard)
		Effective focal length: NLS-Soldier300W: 6mm NLS-Soldier300N: 9mm NLS-Soldier300S: 15mm
		Aim: 2*circular laser
	Reading specifications	Supported symbol: 1D: EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code128, Code93 2D: ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, Code 39, Code 11, MSI-Plessey, Plessey, Deutsche14, Deutsche12.
		Minimum resolution: 1D: NLS-Soldier300W: 1.67mil NLS-Soldier300N: 1mil NLS-Soldier300S: 0.8mil 2D: NLS-Soldier300W: 3.33mil NLS-Soldier300N: 2.5mil NLS-Soldier300S: 2mil
		Reading distance: NLS-Soldier300W: 50 to 1000mm NLS-Soldier300N: 50 to 1000mm NLS-Soldier300S: 100 to 2000mm
		Motion Tolerance: 2m/s
		Min. Symbol Contrast: ≥15%

Physical	Dimensions	61(W)×52.1(D)×100.9(H) mm
	Weight	394.7g
	Prompt	Buzzer, pilot lamp
	Power voltage	24VDC
	Current@24V DC	Rated power: 7.9W
		Standby current: 47mA
	Input	Maximum load current 15mA(Input:5V~30V); 2 inputs
	Output	Maximum load current 50mA(Input:≤30V); 2 outputs
	Communication Interface	RS-232, RS485(optional), USB, TCP/IP, UDP, FTP, Modbus, Ethernet/IP, Profinet

Environmental	Working temperature	-10℃~+50℃
	Ambient storage temperature	-40℃~+70℃
	Relative humidity	5%~95% (No condensation)
	Enclosure rating	IP67

Accessories	Cable	Ethernet cable, USB+RS232+I/O cable
	Adapter	Input 100~240V,output DC 24V/1.5A
	Others	Fixed bracket, RS485 cable (optional), Polarising filter (optional), Magnifying glass (optional)

Certification

Certification

CE, FCC, ROHS 2.0

​​​​​​​
